I often forget how to do this. So I’m posting it here so that I can come back when I need it (content poverty laughs from the corner).

Prerequisites:

  1. Android Studio (or just the SDK tools if you’re a nerd)
  2. Android Virtual Device (I don’t like Genymotion)
  3. Python
  4. Conda or any other environment manager (optional but recommended)

If the SDK binaries are not in your PATH environment variable, paste the following in your .bashrc or equivalent.

export ANDROID_HOME=$HOME/Library/Android/sdk
export PATH=$PATH:$ANDROID_HOME/emulator
export PATH=$PATH:$ANDROID_HOME/tools
export PATH=$PATH:$ANDROID_HOME/tools/bin
export PATH=$PATH:$ANDROID_HOME/platform-tools
export PATH=$PATH:$ANDROID_HOME/cmdline-tools/latest/bin

Setting Up The SDK And Emulator#

  1. Go to Android Studio -> Tools -> SDK Manager

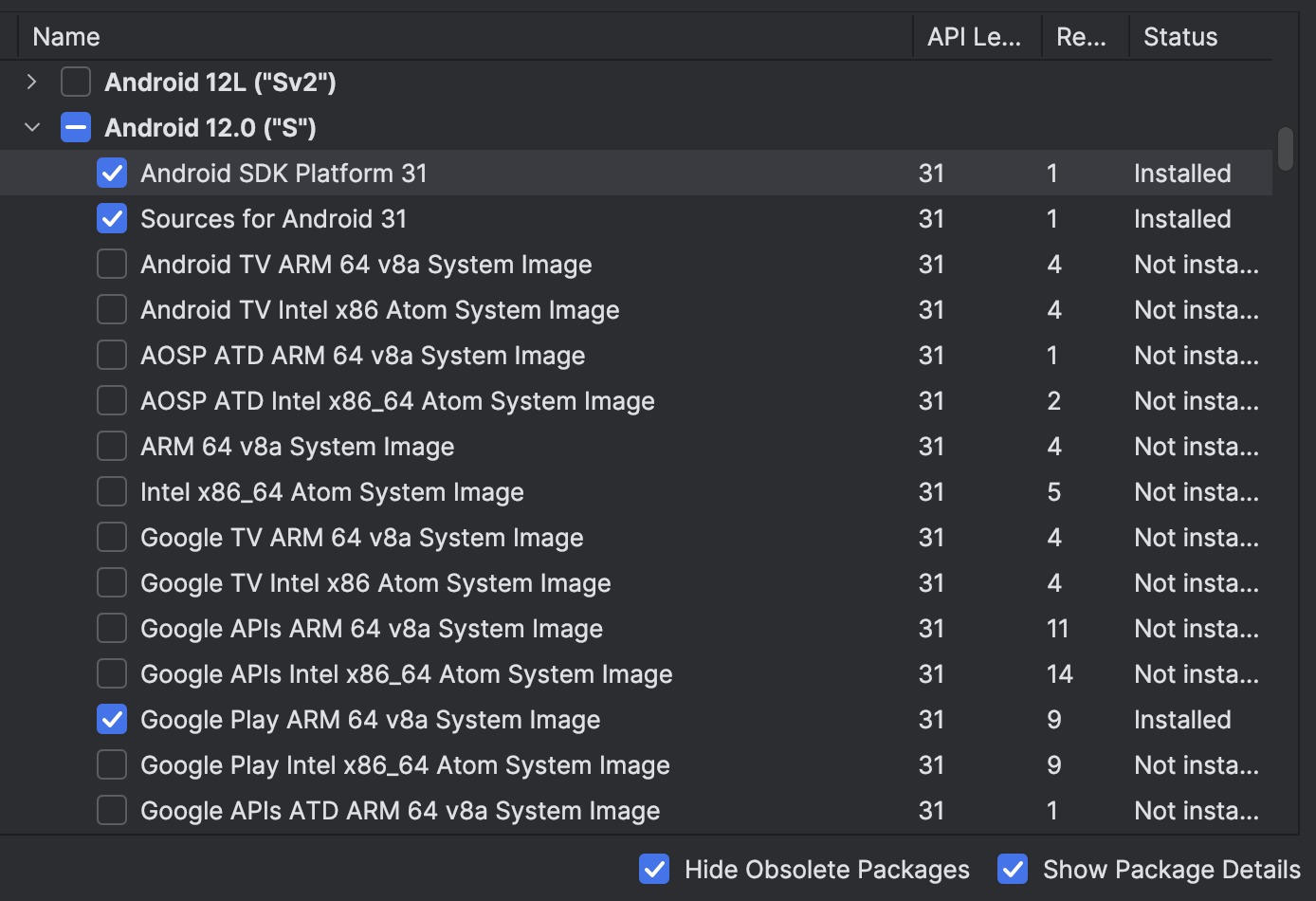

  2. From the Android 12.0 ("S") dropdown, select the SDK Platform, Sources, and Google Play ARM 64 system image. Welcome
  3. After finishing the SDK setup, go to Tools -> Device Manager and create a virtual device.

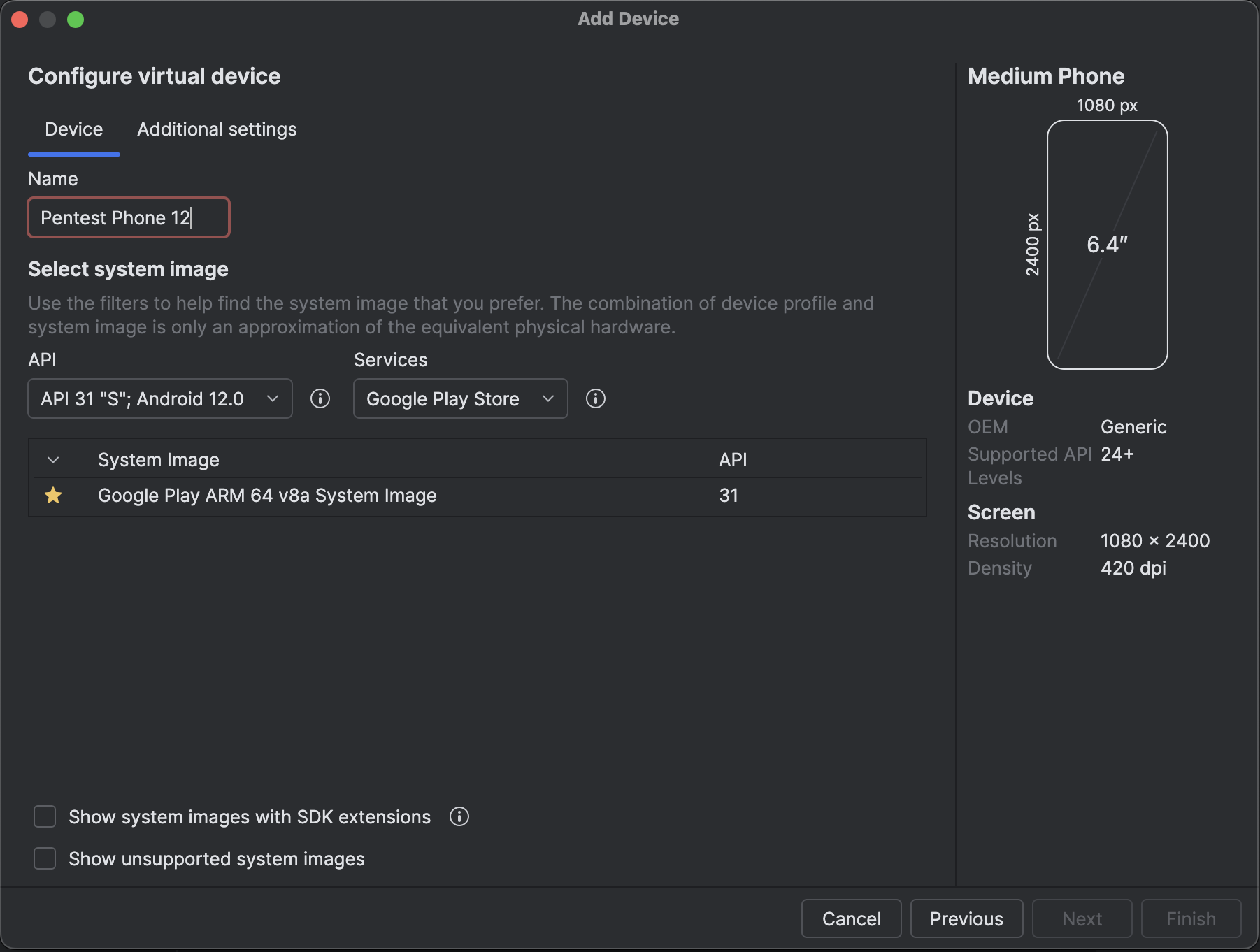

  4. Choose Medium Phone as the device, give it a name and choose API 31 "S"; Android 12.0 (personal preference, you can choose any API). Welcome
  5. Start the device to confirm it works (the below command lists all the devices present).
$ emulator -list-avds
Pentest_Phone_12

Rooting the Device#

  1. Clone the repo https://gitlab.com/newbit/rootAVD.git
  2. Start the device without restoring snapshots (cold boot).
$ emulator -avd Pentest_Phone_12 -no-snapshot-load
  1. Run rootAVD in another terminal:
$ cd rootAVD
$ ./rootAVD.sh ListAllAVDs
# ..... this will list the image we downloaded
$ ./rootAVD.sh system-images/android-31/google_apis_playstore/arm64-v8a/ramdisk.img
# ..... REDACTED
Dumping cpio: [ramdisk.cpio]
[*] repacking back to ramdisk.img format
[!] Rename Magisk.zip to Magisk.apk
[*] Pull ramdiskpatched4AVD.img into ramdisk.img
[-]
[*] Pull Magisk.apk into
[-]
[*] Pull Magisk.zip into .
[-]
[-] Clean up the ADB working space
[-] Install all APKs placed in the Apps folder
[*] Trying to install Apps/Magisk.apk
[*] Performing Streamed Install
[*] Success
[-] Shut-Down & Reboot (Cold Boot Now) the AVD and see if it worked
[-] Root and Su with Magisk for Android Studio AVDs
[-] Trying to shut down the AVD
[!] If the AVD doesn't shut down, try it manually!
[-] Modded by NewBit XDA - Jan. 2021
[!] Huge Credits and big Thanks to topjohnwu, shakalaca, vvb2060 and HuskyDG
  1. Once rooting is done, the emulator may reboot by itself. In case it doesn’t reboot, boot the device again without loading snapshots.
$ emulator -avd Pentest_Phone_12 -no-snapshot-load
  1. Verify root by checking the user id.
$ adb shell su -c 'id'

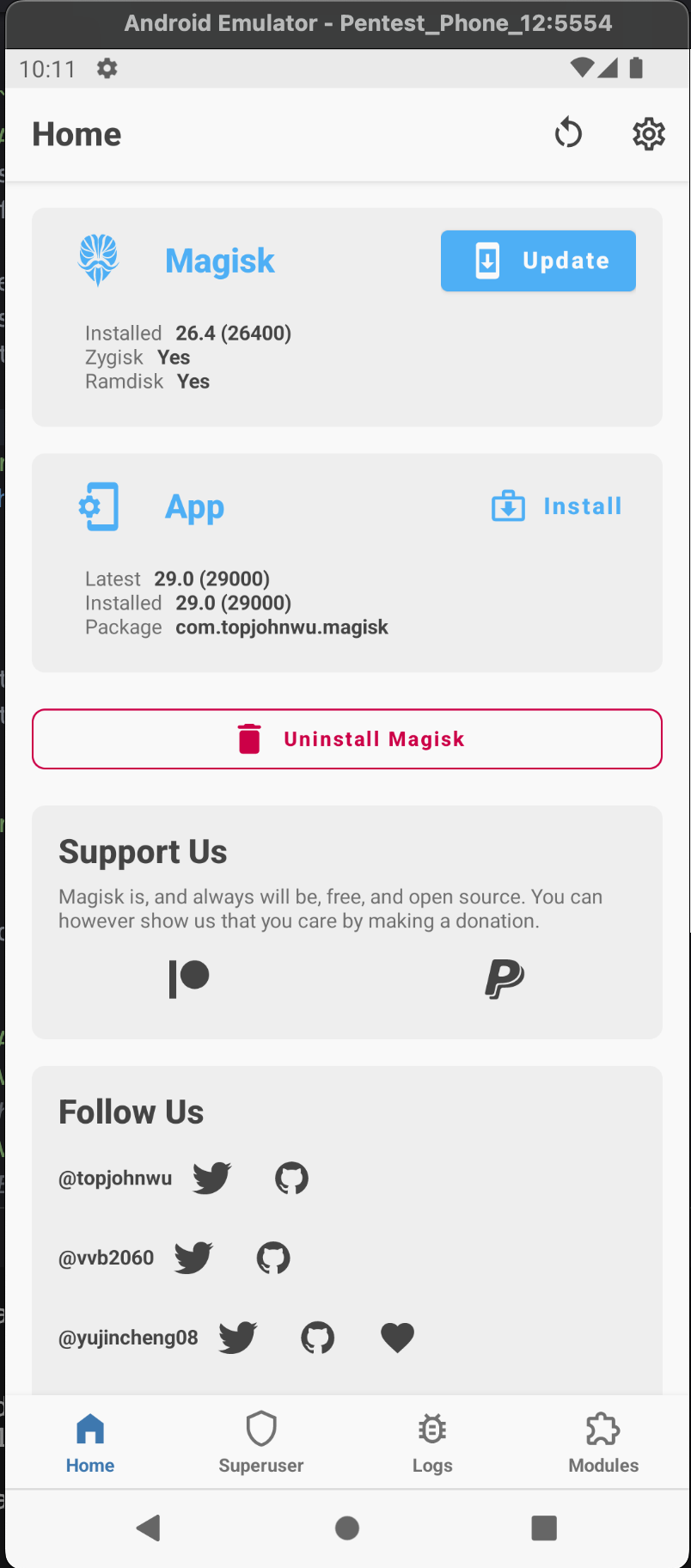

Or by opening Magisk app from the device. Welcome

  1. If it prompts for a full version installation, choose Install -> Direct Install (Recommended)
  2. Allow the permission if it requests to install from an unknown source.
  3. Reboot the device once Magisk is updated.

Install Frida#

  1. Create and activate the Python environment for testing.
$ conda create --name mobile-pentesting-env python=3.11
$ conda activate mobile-pentesting-env
  1. Install Frida tools.
$ pip install frida-tools

  1. Download and extract Frida server binary for Android arm64 from Frida releases page. At the time of writing this, the latest version was 17.5.1 .

  2. Run the server on the rooted device.

$ mv frida-server-17.5.1-android-arm64 frida-server
$ adb push frida-server /data/local/tmp/
$ adb shell su -c 'chmod 755 /data/local/tmp/frida-server'
$ adb shell su -c '/data/local/tmp/frida-server &'
  1. Confirm everything is working.
$ frida-ps -U

This should list the processes running on the device like below.

# .....
 682      com.android.bluetooth
1449      com.android.emulator.multidisplay
 787      com.android.networkstack.process
 803      com.android.se
 694      com.android.systemui
7518      com.android.vending
7927      com.google.android.apps.messaging
1052      com.google.android.apps.nexuslauncher
5175      com.google.android.apps.restore
 961      com.google.android.ext.services
# .....

Conclusion#

I’m now too tired to write the conclusion, and I made a pact that I won’t use chatgpt except for fixing the grammatical errors. But you got the idea right? Go break some apps (ethically, of course).

References#

  1. RootAVD Repository
  2. Frida documentation
